anti-seismic ceiling expansion joint for building

FOB Reference Price:Get Latest Price
US $7.5-45 / Meters | 10 Meter/Meters Expansion Joint Cover (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
MEISHUO
Model Number:
MSDYH
Material:
Aluminum Alloy, aluminum 6063 T5
Application:
Floor to Floor
Standard:
ASTM
Length:
3M
joint width:
25-500mm
finish:
Anodized
Option:
water barrier
Fire Rating:
2 hours
Certificate:
ISO 9001:2008
Screws:
Supplied
Supply Ability
Supply Ability:
8546 Meter/Meters per Month Expansion Joint Cover
Packaging & Delivery
Packaging Details
Plywood Case
Port
Shanghai
Lead Time :
18 days

anti-seismic ceiling expansion joint for building

What are expansion joint covers used for?

MEISHUO Expansion joint covers are designed to cover the location that movement is occurring in structures. When a building in constructed it is designed to move as a result of long-term shrinkage of the structure, thermal expansion and contraction of the structure and in some cases even seismic activity. The expansion joint covers are installed over these areas of movement called expansion joints which are sometimes also referred to as movement joints, structural joints, isolation joints, control joints or seismic joints.

How to select an expansion joint cover?

Application

Joint Width

Set Down Depth

Traffic Usage

Fire Rating Required

Cover Plate Material

Location

Floor Finish

Range of Movement

Material of aluminum building expansion joint cover: Aluminium 6063 T5

T5 temper 6063 has an ultimate tensile strength of at least 20,000 psi (152 MPa) in thicknesses up to 0.5-inch (13 mm), and 19,000 psi (145 MPa) from 0.5 to 1.0-inch (25 mm) thick, and yield strength of at least 14,000 psi (110 MPa) up to 0.5-inch (13 mm) and 13,000 psi (103 MPa) (from 0.5 to 1.0-inch (25 mm). It has elongation of 8%.

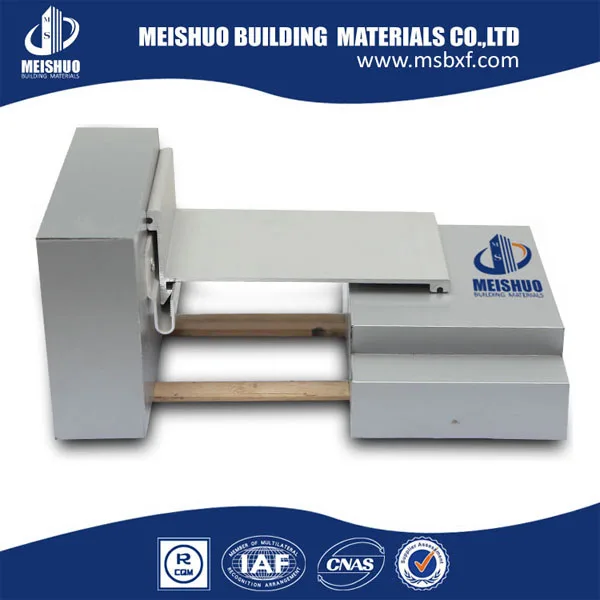

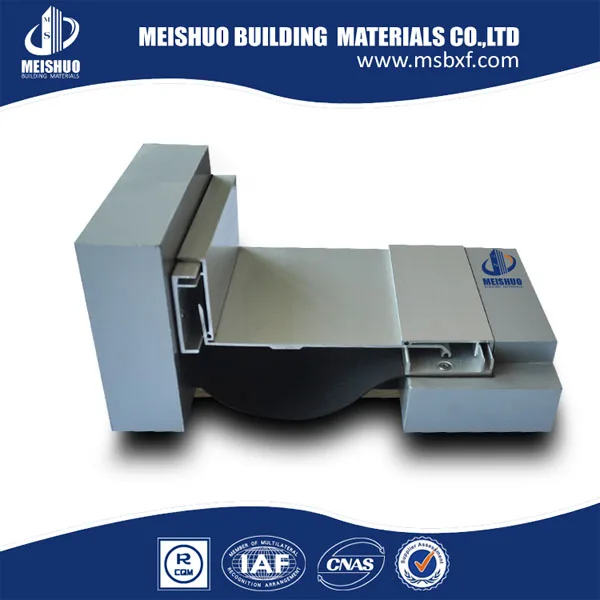

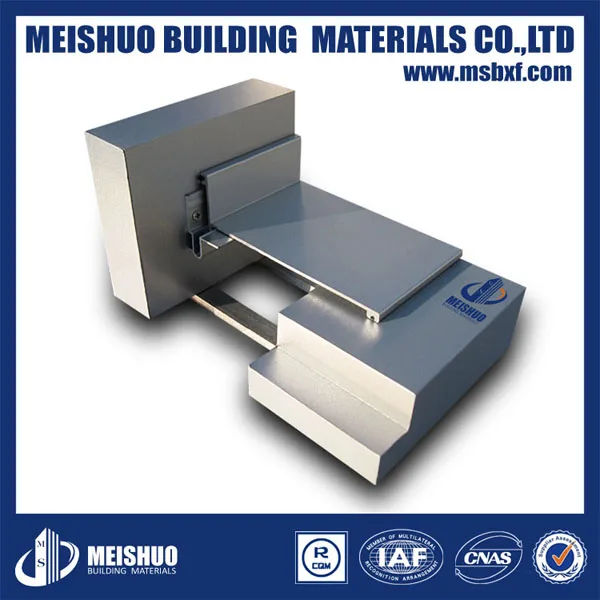

Expansion Joint Cover Photos

MSN-QDK (3).jpgMSN-QDK (4).jpgMSN-QDK.jpgMSN-QSK (3).jpg

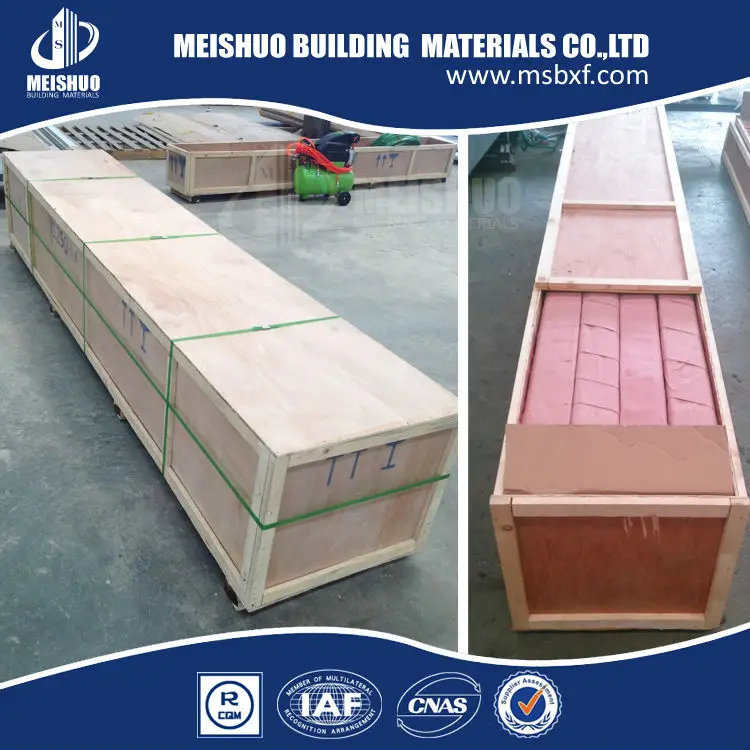

Packing Details for Building Expansion Joint Cover

2
